Canon Colorado 1650 UVgel 64″ roll to roll Printer

Oce Colorado UVgel

Canon Colorado 1650 UVgel 64″ roll to roll Printer

1 2 3 4 5

(No reviews yet) Write a Review

SKU:
88 00 1962C002
Weight:
1588.0

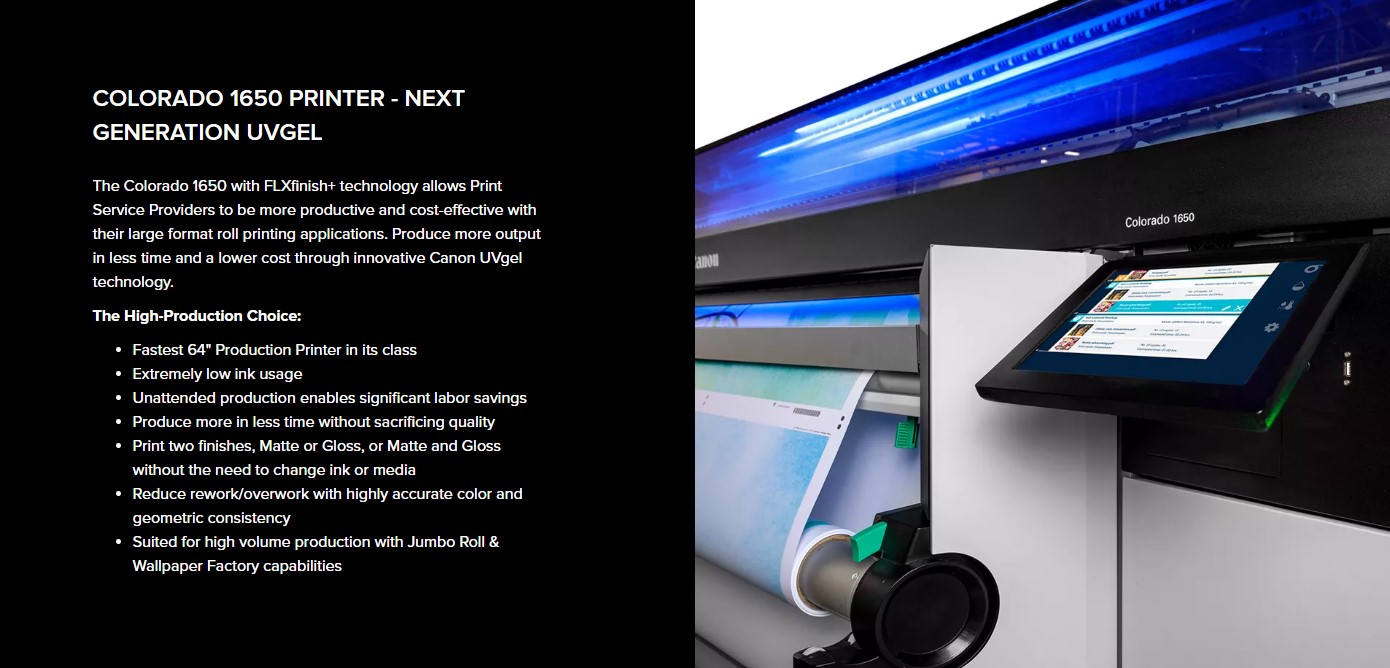

COLORADO 1650 PRINTER – NEXT GENERATION UVGEL

The Colorado 1650 with FLXfinish+ technology allows Print Service Providers to be more productive and cost-effective with their large format roll printing applications. Produce more output in less time and a lower cost through innovative Canon UVgel technology.

The High-Production Choice:

  • Fastest 64″ Production Printer in its class
  • Extremely low ink usage
  • Unattended production enables significant labor savings
  • Produce more in less time without sacrificing quality
  • Print two finishes, Matte or Gloss, or Matte and Gloss without the need to change ink or media
  • Reduce rework/overwork with highly accurate color and geometric consistency
  • Suited for high volume production with Jumbo Roll & Wallpaper Factory capabilities

The Flexible Choice
Powered by Canon UVgel Technology

Colorado series of roll-to-roll printers have been fine-tuned to fit your business needs. Print Service Providers (PSPs) now have a clear choice that will deliver real production efficiency while lowering operating costs and increasing profits. Featuring FLXfinish+ matte/gloss finish, dual-roll drawer and double-sided printing – the choice is yours!

FLXfinish+: One Click, Two Finishes, One Print

FLXfinish+ is a revolutionary NEW technology for Canon Colorado printers that allows PSPs to command a premium price for their prints, while not incurring additional costs. Print gloss AND matte on the same print without a varnish or additional consumables.

Technical Specifications

Main Unit Specs

Printing Method
UVgel piezoelectric inkjet
Printing modes
Gloss:
Max speed mode: 1,709 ft.2/hr.
High speed mode: 1,229 ft.2 /hr.
Production speed Mode: 861 ft.2/hr.
Production mode: 610 ft.2/hr.
Production quality mode: 570 ft.2/hr.
High quality mode: 430 ft.2/hr.
Superior mode: 290 ft.2/hr.
Specialty mode: 222 ft.2/hr.
FLXfinish+: 72 ft.2/hr.

Matte:
High Speed: 495 ft.2/hr.
Speed: 409 ft.2/hr.
Production: 333 ft.2/hr.
Quality: 290 ft.2/hr.
Specialty: 215 ft.2/hr.
Backlit: 215 ft.2/hr.
Backlit Density: 107 ft.2/hr.
FLXfinish+: 72 ft.2/hr.

Print resolution
Up to 1,800 dpi
Ink types

UVgel 460 ink, CMYK (1-liter bottles)

Ink color
CMYK
Ink packaging
2 x 1-liter ink bottle
Ink reservoir can accommodate up to 2.5 liters per ink color
Printheads
UVgel 415 printheads (two per color)
Automatic maintenance
PAINT constantly monitors and compensates for nozzle failures that can occur during printing
Automatic maintenance performed in seconds, daily
Refill ink while printing
Curing
UV LED with FLXfinish+, instant dry, low temperature

Media

Roll width
Up to 64″ (1,625 mm)
Print margin
0.21″ (5.3 mm)*
Roll weight
Up to 110 lb. (50 kg)
Roll diameter

Up to 8.7″ (220 mm)

Media thickness
Up to 0.03″ (0.8 mm)
Number of input rolls
2 rolls in PSO mode / 1 roll in PSI mode
Automatic roll-feeding and switching

Technologies

UVgel technology
Instant pinning and dot gain control
Low-temperature curing, suitable for thin and heat-sensitive media
High-precision color matching and consistency
Instantly dry
FLXfinish+ Technology
Gives you the choice between gloss or matte output on both smooth and structured media
Enables you to print on porous and uncoated materials

Size and weight

Printer dimensions (W x D x H)
119″ x 43″ x 52″ (3,022 x 1,093 x 1,300 mm)
Printer weight
1,631 lb. (740 kg)

Software

Supported RIPs
ONYX Thrive, Caldera, EFI, PrintFactory, ColorGATE, ErgoSoft, Shiraz, AGFA, and API for third-party RIP vendors
